The policy evaluator’s toolbox: Presenting results from randomized experiments

Sensible out-of-the-box tables and plots for your next randomized controlled trial
statistical analysis
policy evaluation
Author

Paw Hansen

Published

May 24, 2023

In this series of blog posts, I go over some of the most common experimental designs, including natural experiments such as difference-in-difference, regression discontinuity designs, and so on.

The goal is to provide you with some sensible default plots and tables you can use when writing up your next experimental analysis. For more detail on the technicalities of the individual designs, check out the sources I link to at the bottom of this post.

Packages used in this post
# Packages we'll be using today
library(tidyverse)
library(modelsummary)
library(marginaleffects)
library(kableExtra)
library(broom)

theme_set(theme_minimal(base_size = 12))

Today: RCTs. What better way to kick off a series on experimental designs than with a truly randomized experiment? To get started, I’ll simulate some fake data we can work with. Table 1 shows a peak of the simulated data.

Code
set.seed(2707)

num_people <- 1000
treat_effect <- 4.5

dat <-
  tibble(
  age = sample(18:75, num_people, replace = T),
  female = sample(c(0, 1), num_people, replace = T),
  non_western = sample(c(0, 1), num_people,
                       replace = T, prob = c(.85, .15)),
  condition = sample(0:1, size = num_people,
                     replace = TRUE),
  mu = 10 + .5 * age + 8 * female - 10 * non_western +
    treat_effect * condition + .25 * (age*condition),
  outcome = rnorm(num_people, mu, 2.5)
) |>
  select(-mu)

# Recode into factors
dat <-
  dat |>
  mutate(condition = ifelse(condition == 1, "Treatment", "Control")) |>
  mutate(female = ifelse(female == 1, "Female", "Male")) |>
  mutate(non_western = ifelse(non_western == 1, "Non-western", "Western"))

head(dat) |>
  kbl(digits = 2)
Table 1: A peak at the simulated data
age female non_western condition outcome
47 Female Western Control 43.60
47 Male Western Control 32.64
44 Female Western Treatment 49.03
44 Female Western Control 40.30
63 Male Western Control 35.46
51 Female Western Treatment 60.32

Presenting descriptives

First, let’s make a table to see if our two groups are balanced on average. See Table 2. This would be your typical “Table 1” if you were writing a research paper.

Code
dat_summary <-
  dat |>
  select(
    Age = age,
    Female = female,
    'Non-Western' = non_western,
    condition,
    -outcome,
  )

datasummary_balance(~condition,
                    data = dat_summary)
Table 2: Means of covariates across experimental conditions
Control (N=485)
Treatment (N=515)
Mean Std. Dev. Mean Std. Dev. Diff. in Means Std. Error
Age 46.6 16.7 47.1 16.6 0.6 1.1
N Pct. N Pct.
Female Female 237 48.9 248 48.2
Male 248 51.1 267 51.8
Non-Western Non-western 72 14.8 83 16.1
Western 413 85.2 432 83.9

Alternatively, you could reserve that table for an appendix and instead present a table showing descriptives of the full sample. Table 3 shows an example.

Code
dat_summary <-
  dat |>
  select(
    Age = age,
    Female = female,
    'Non-Western' = non_western,
    Condition = condition,
    -outcome,
  )

datasummary_balance(~1,
                    data = dat_summary)
Table 3: Means of covariates for the full sample
Mean Std. Dev.
Age 46.9 16.6
N Pct.
Female Female 485 48.5
Male 515 51.5
Non-Western Non-western 155 15.5
Western 845 84.5
Condition Control 485 48.5
Treatment 515 51.5

Presenting results

After presenting evidence that your randomization was successful, you should move on to present your results. This could be either as a regression table (Table 4) or as a figure (Figure 1).

Code
model_basic <-
  lm(outcome ~ condition, data = dat)

model_cov_adj <-
  lm(outcome ~ . + age*condition, data = dat)

modelsummary(models = list(
  "Unadjusted" = model_basic,
  "Covariate adjusted" = model_cov_adj),
  coef_rename = c(
    "age" = "Age (in years)",
    "femaleMale" = "Sex: Male",
    "conditionTreatment" = "Condition: Treatment",
    "non_westernWestern" = "Origin: Western",
    "age:conditionTreatment" = "Age x Treatment")
  )
Table 4: Outcome across experimental conditions (OLS estimates)
Unadjusted Covariate adjusted
(Intercept) 35.641 8.141
(0.553) (0.394)
Condition: Treatment 16.548 4.899
(0.770) (0.479)
Age (in years) 0.501
(0.007)
Sex: Male −7.975
(0.160)
Origin: Western 9.660
(0.221)
Age x Treatment 0.245
(0.010)
Num.Obs. 1000 1000
R2 0.316 0.971
R2 Adj. 0.315 0.971
AIC 7840.9 4697.8
BIC 7855.6 4732.1
Log.Lik. −3917.440 −2341.879
RMSE 12.16 2.52

I personally prefer Figure 1 because in addition to showing the model (i.e. the two group averages), it also conveys information about the full distribution of data for both groups.

Code
means <-
  dat %>%
  group_by(condition) %>%
  summarise(avg = mean(outcome),
            sd = sd(outcome))

avg_control <-
  means %>%
  filter(condition == "Control") %>%
  select(avg)

dat %>%
  ggplot(aes(condition, outcome)) +
  geom_jitter(aes(color = condition), alpha = .4) +
  geom_hline(yintercept = avg_control$avg, linetype = "dashed", color = "grey50") +
  geom_pointrange(data = means, aes(x = condition,
                                    y = avg,
                                    ymin = avg + sd,
                                    ymax = avg - sd)) +
  labs(color = "Condition",
       x = NULL,
       y = "Outcome") +
  scale_color_brewer(palette = "Set1") +
  theme(legend.position = "none")

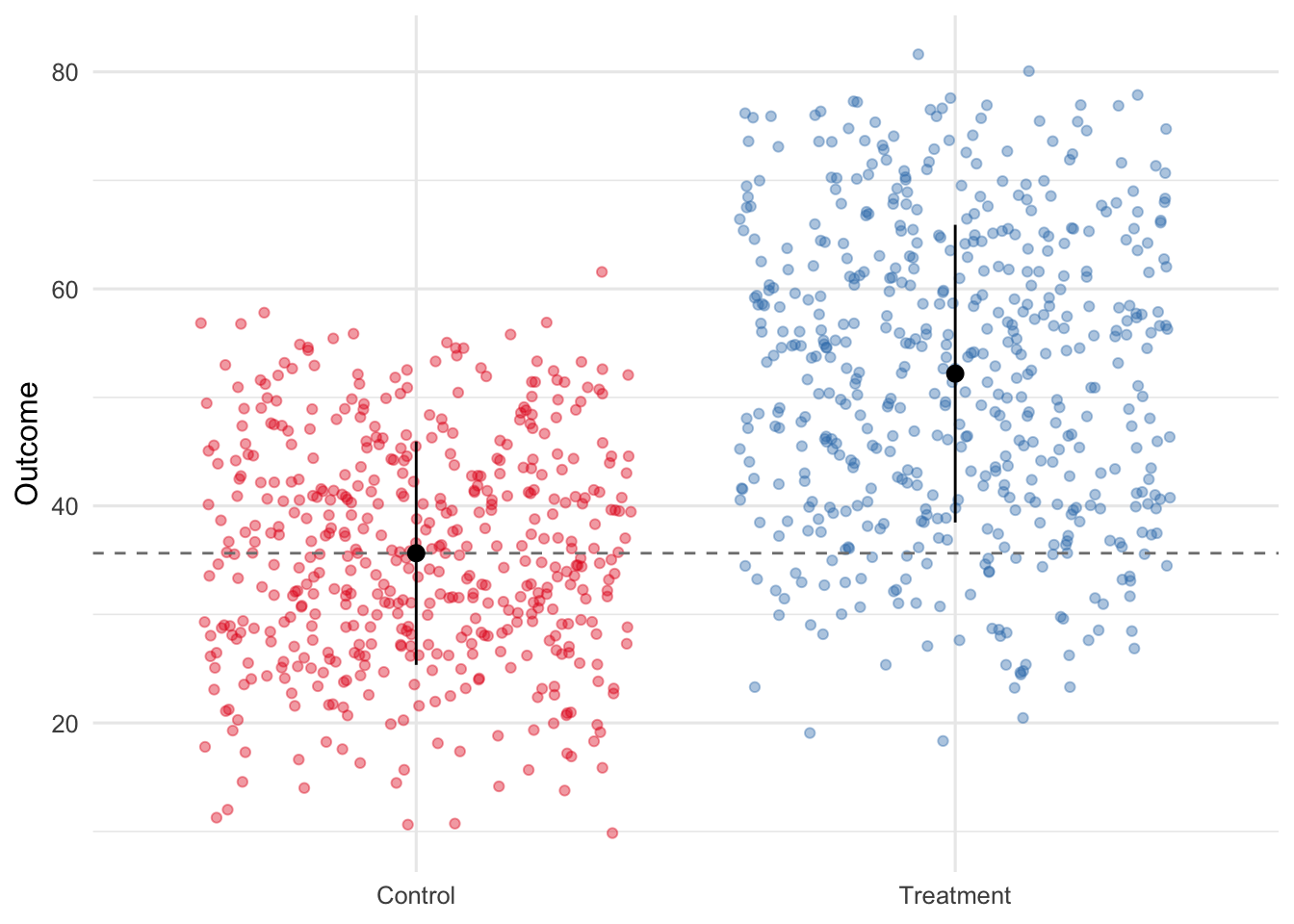

Figure 1: Outcome across experimental conditions

Presenting interactions

Finally, we might be interested in plotting some type of interaction with our treatment. The basic recipe is to define some values for each of the predictors and then use those to predict the outcome. We can use augment() from the broom package to do so.

Code
pred_matrix <-
  crossing(
    condition = c("Control", "Treatment"),
    age = 15:75,
    female = "Female",
    non_western = "Western"
  )

preds <-
  augment(model_cov_adj, newdata = pred_matrix, se_fit = TRUE) |>
  mutate(.lwr = .fitted - 1.96 *.se.fit,
         .upr = .fitted + 1.96 *.se.fit)

With our predictions, we can make a basic graph as in Figure 2.

Code
preds |>
  ggplot(aes(age, .fitted, color = condition)) +
  geom_line() +
  geom_line(aes(y = .lwr), lty = "dashed", linewidth = .25) +
  geom_line(aes(y = .upr), lty = "dashed", linewidth = .25) +
  scale_color_brewer(palette = "Set1") +
  geom_point(data = dat, aes(age, outcome), alpha = .1) +
  labs(x = "Age (in years)",
       y = "Outcome") +
  annotate(geom = "text", label = "Treated units", x = 70, y = 65, color = "#377eb8") +
  annotate(geom = "text", label = "Control units", x = 70, y = 45, color = "#e41a1c") +
  theme(legend.position = "none")

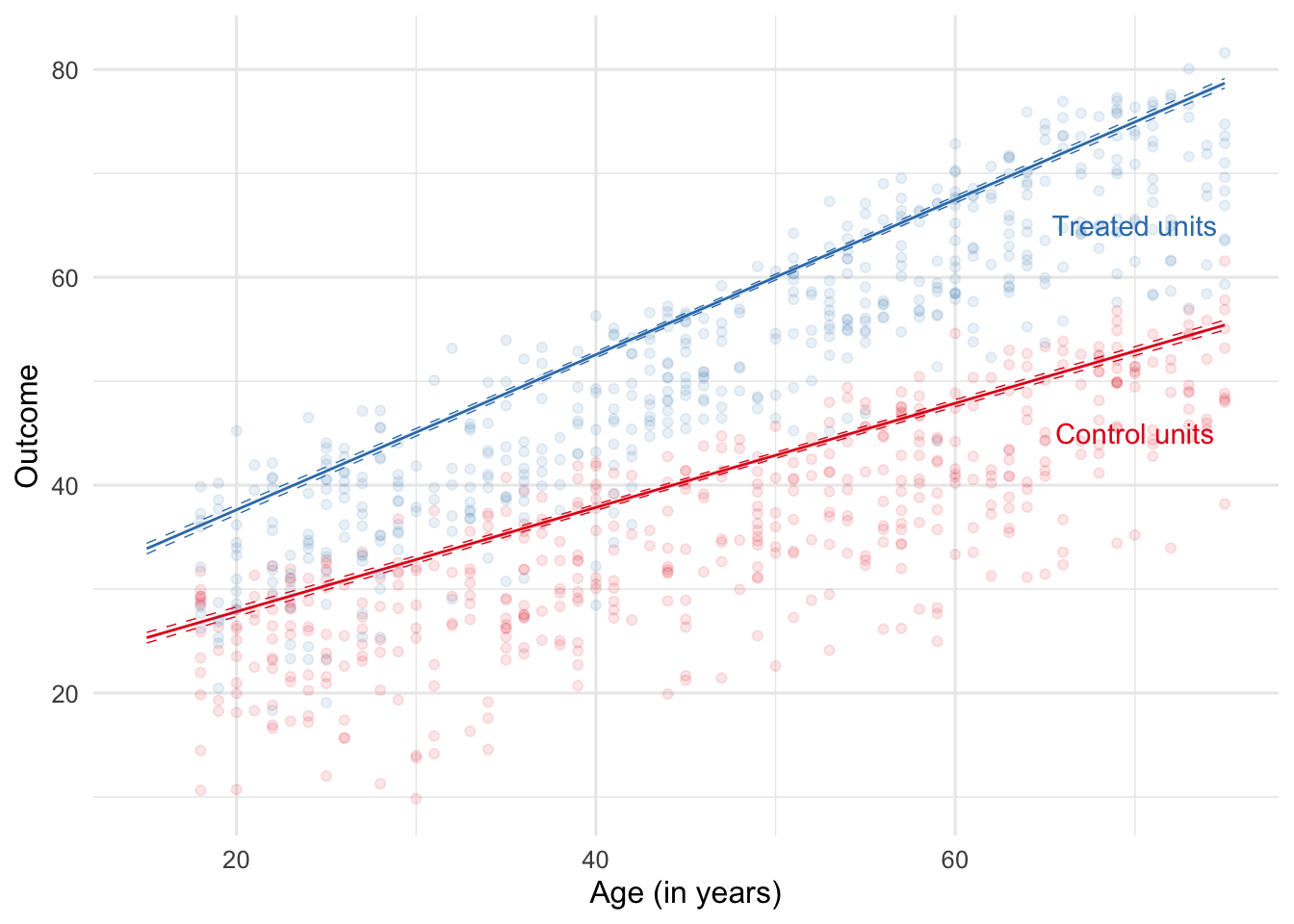

Figure 2: Comparing treatment effects across age for treated and non-treated units

Notice how this graphs the predicted outcome across age but for Western females only. Alternatively, we could average over predictions from different subgroups to calculate the marginal effects. The marginaleffects package has a nice suite of functions to help us do just that.

Final thoughts: Presenting results from randomized experiments

RCTs are commonly used to test for causal relationships and knowing the basics in terms of presentation is therefore essential. In this post, I have shown how to use R to calculate and present some of the most common tables and figures used for RCTs. Now you’re ready to present your next RCT!

Cool! Where can I learn more?

  • Coppock, A. (2021). Visualize as you randomize. Advances in experimental political science.

  • Healy, K. (2018). Data visualization: a practical introduction. Princeton University Press.
